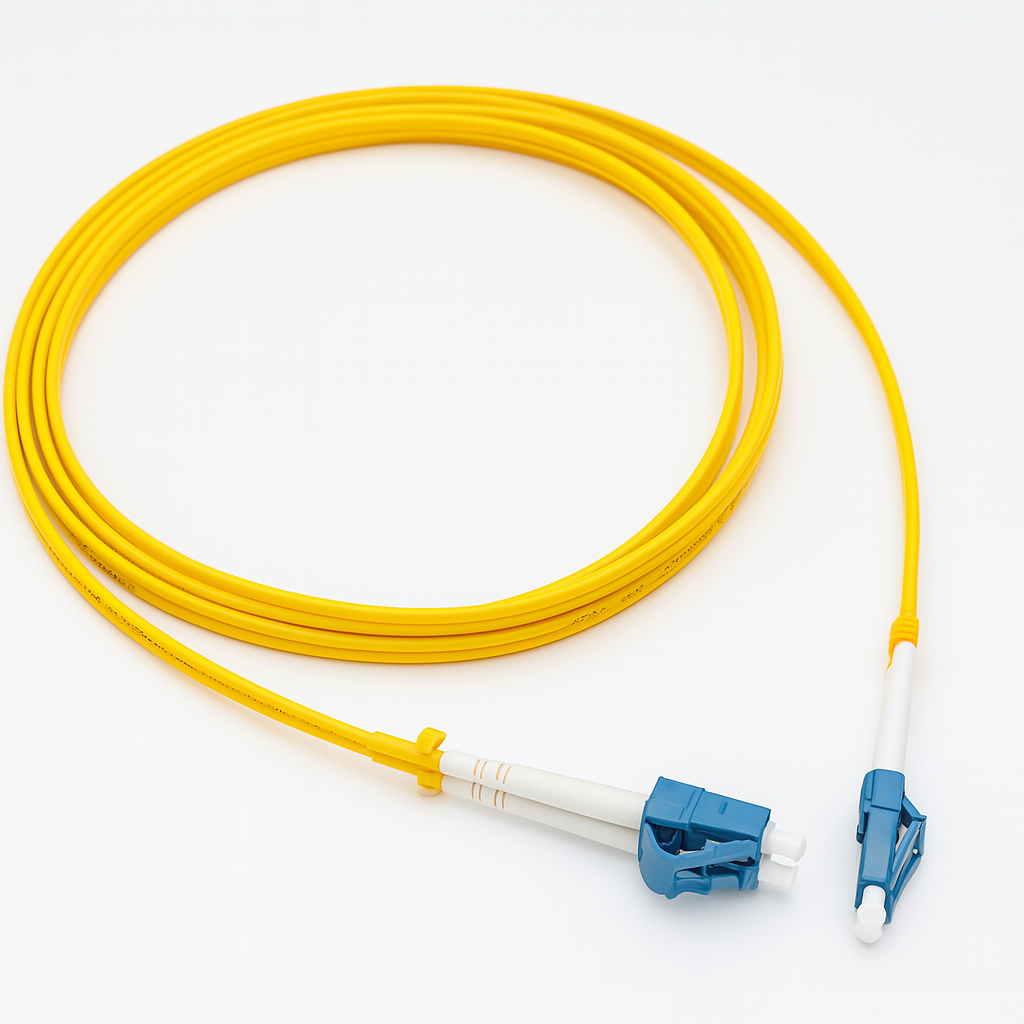

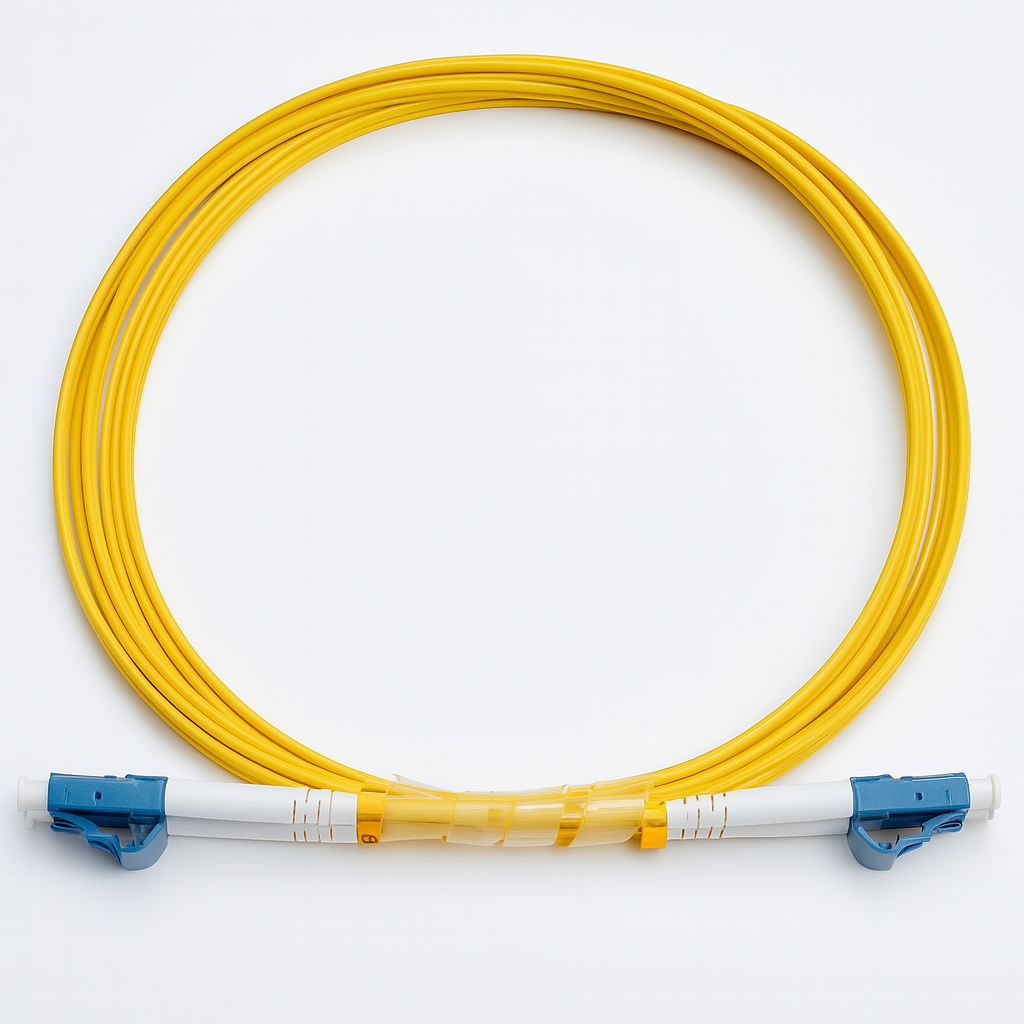

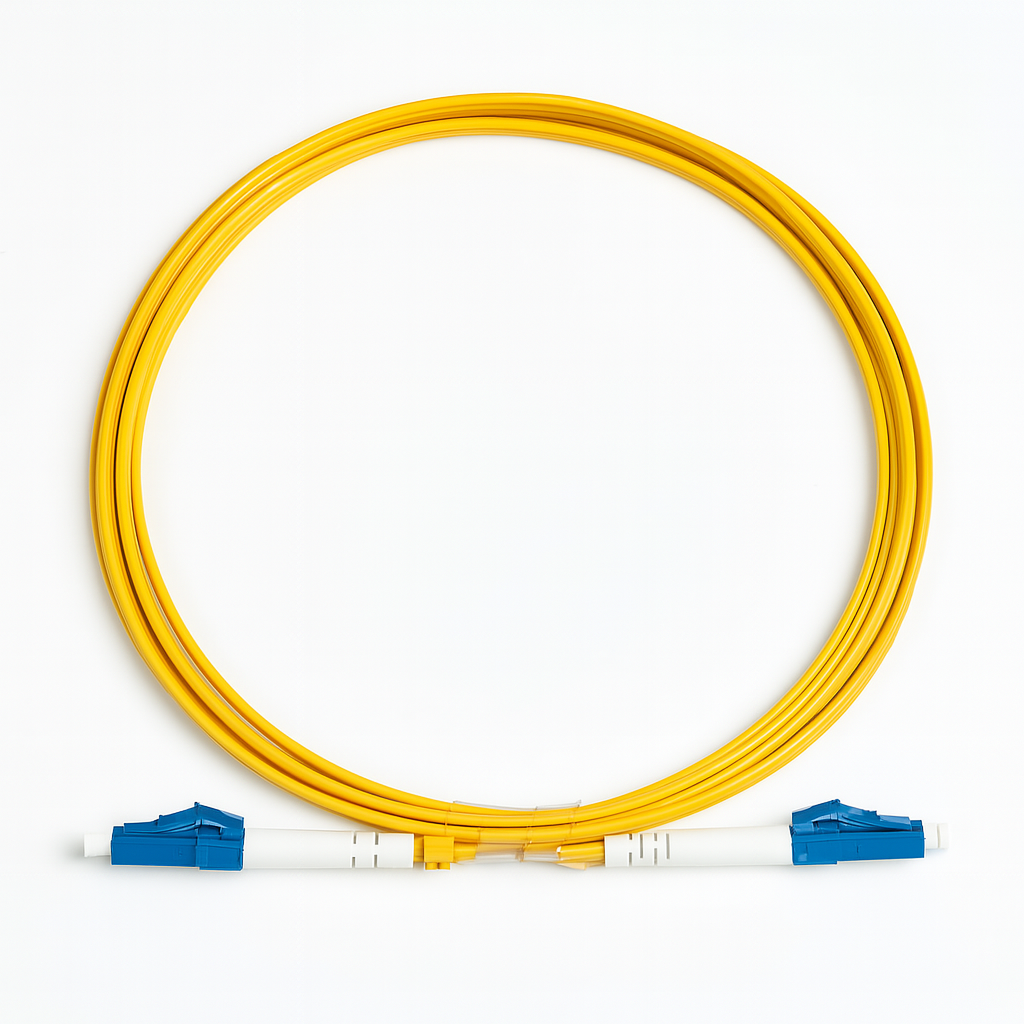

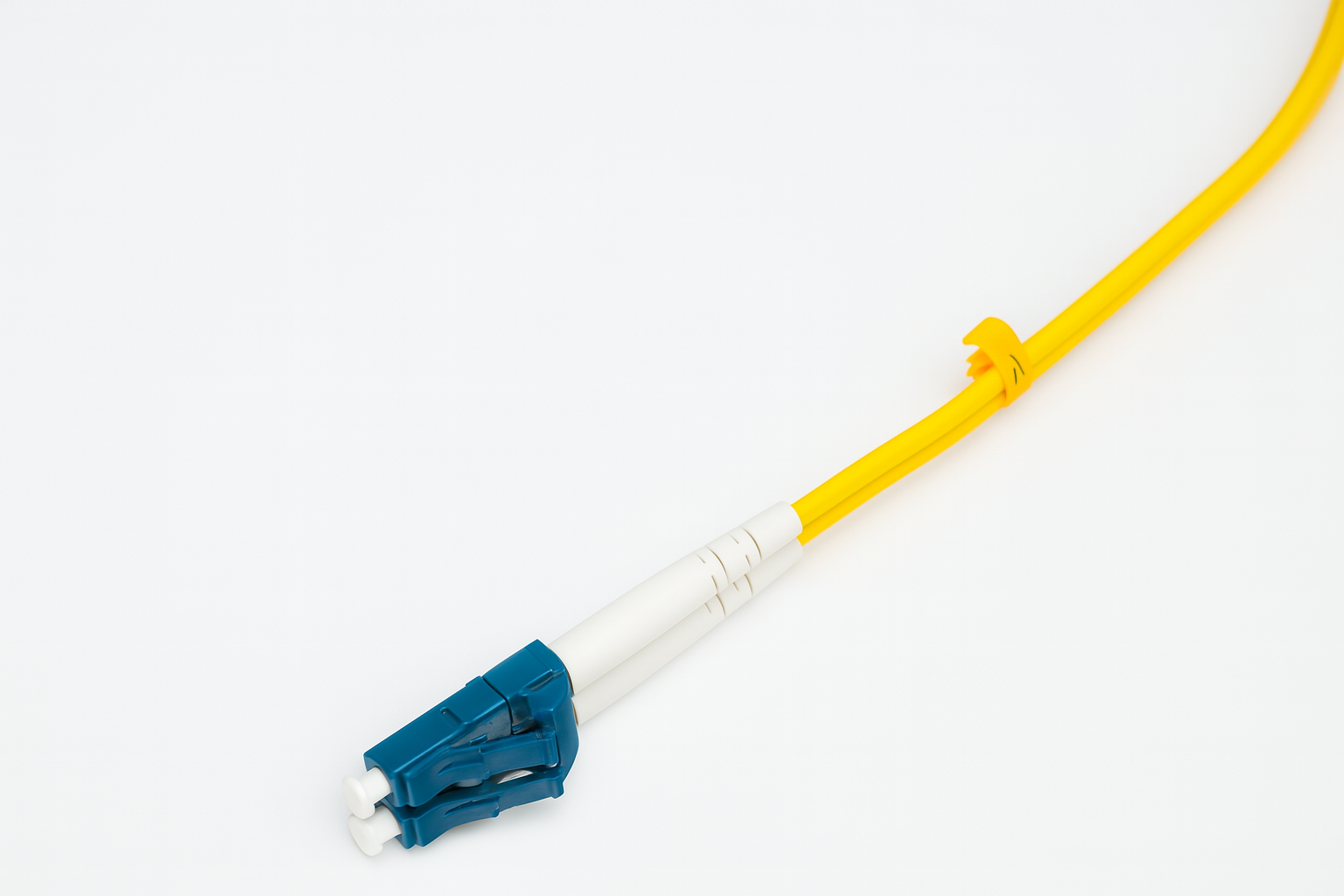

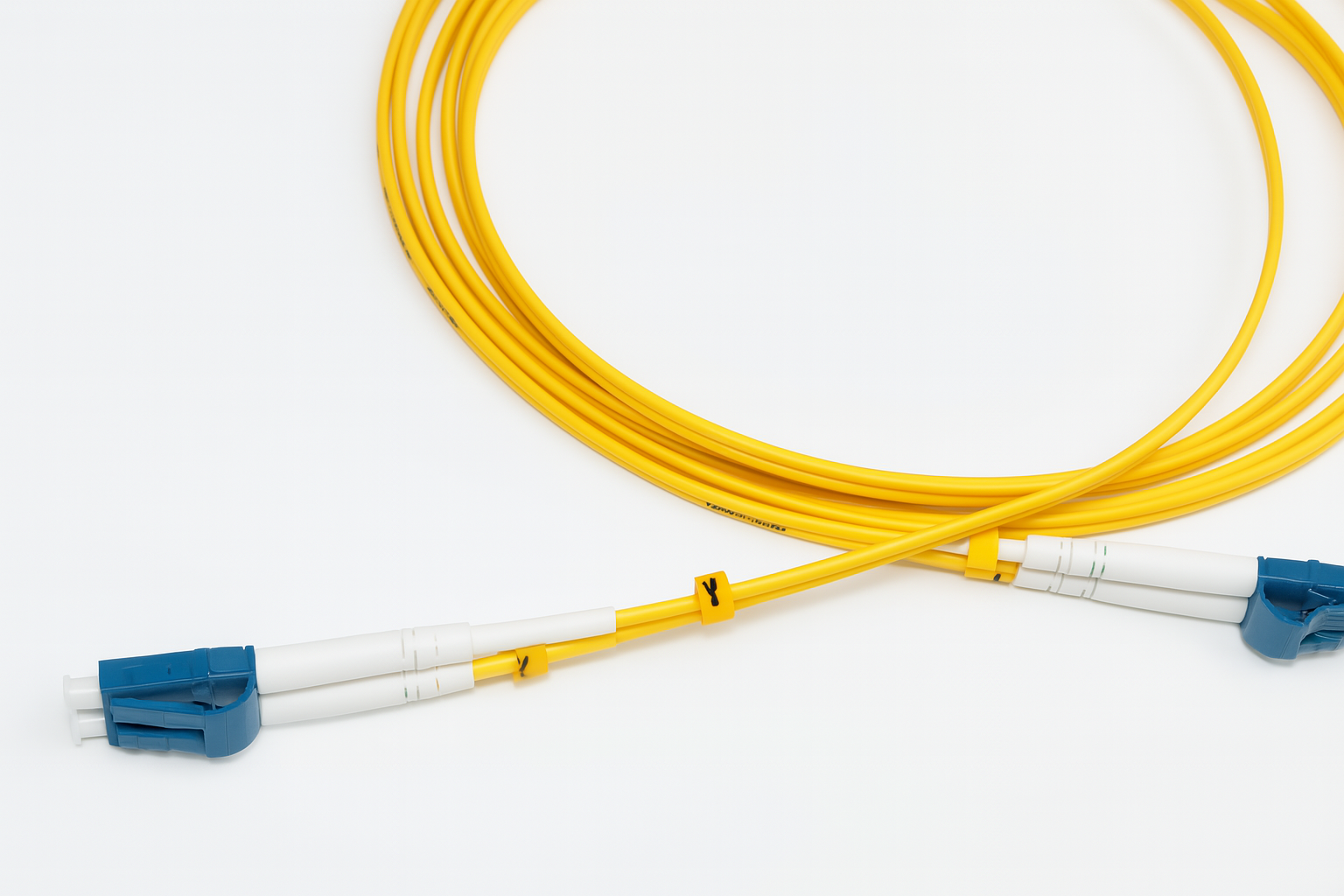

Fiber Patch Cords – LC to LC (OS2 G657A, LSZH, Duplex)

Fiber Patch Cords – LC to LC (OS2 G657A, LSZH, Duplex)

Regular price $16.00 AUD
Regular price Sale price $16.00 AUD
Sale Sold out
Tax included.
Length

           LC-LC Patch cord

LC to LC Fiber Optic Patch Cord – High-Precision Cable for High-Speed Network Connectivity

Achieve ultra-reliable, high-performance connectivity with our LC-LC fiber optic patch cords, designed for today's demanding data transmission needs. Featuring compact LC connectors on both ends, these patch cords offer excellent space-saving benefits—ideal for dense patch panels, data centers, and high-density networking environments.

Available in both single-mode (OS2) for long-distance applications and multimode (OM3/OM4) for high-speed short-range links, these cables support data rates up to 10G/40G/100G, ensuring seamless integration with modern networking equipment like switches, servers, and transceivers.

Engineered with low insertion loss and high return loss, each LC-LC cable guarantees stable signal quality and minimal transmission loss. The flame-retardant LSZH jacket enhances safety while providing flexibility and durability for easier cable management.

Key Features:

  • LC to LC connectors with UPC or APC polish options

  • Single-mode OS2 or multimode OM3/OM4 fiber available

  • Supports 10G/40G/100G high-speed data transmission

  • Low insertion loss, high return loss for optimal performance

  • Durable LSZH (Low Smoke Zero Halogen) jacket for safe, indoor use

  • Ideal for data centers, enterprise networks, telecom, and FTTH systems

  • 100% factory-tested to ensure quality and reliability

Whether you're upgrading your core infrastructure or adding new links to your network, these LC-LC patch cords provide the performance, durability, and precision you can trust.

u  Applications

Ø  CATV

Ø  Telecommunication networks

Ø  Active device termination

Ø  Local area networks(LANS)

Ø  Data processing networks

Ø  Test equipment

Ø  Wide area networks(WANS)

u  Features

Ø  Low insertion loss and High reflection loss

Ø  Good exchange ability

Ø  Good durability

Ø  High temperature stability

Ø  Standard:Telcordia GR-326-CORE



u  Specifications

End face type

UPC

Fiber type

9/125

Cable Diameter

2.0 or customizedduplex

Insertion loss

≤ 0.3 dB

Return loss

SM    50 dB

Repeatability

≤ 0.1

Durability

≤ 0.2dB

Interchangeability

≤ 0.2dB

Tensile strength

>70N

Operating Temperature

-20℃~70℃

Storage Temperature

-40℃~80℃

Outer Sheath Material

LSZH

Bending radiusStatic/Dynamic

10D/20D

Length

Customized



u  Ordering Information



① connector type

LC

② Fiber Type

9/125

③ Cable Diameter

2.0mm

④ cable cores

DX=duplex

Outer Sheath Material

LSZH
