Fiber Patch Cords – LC to SC (OS2 G652A, LSZH, Duplex)

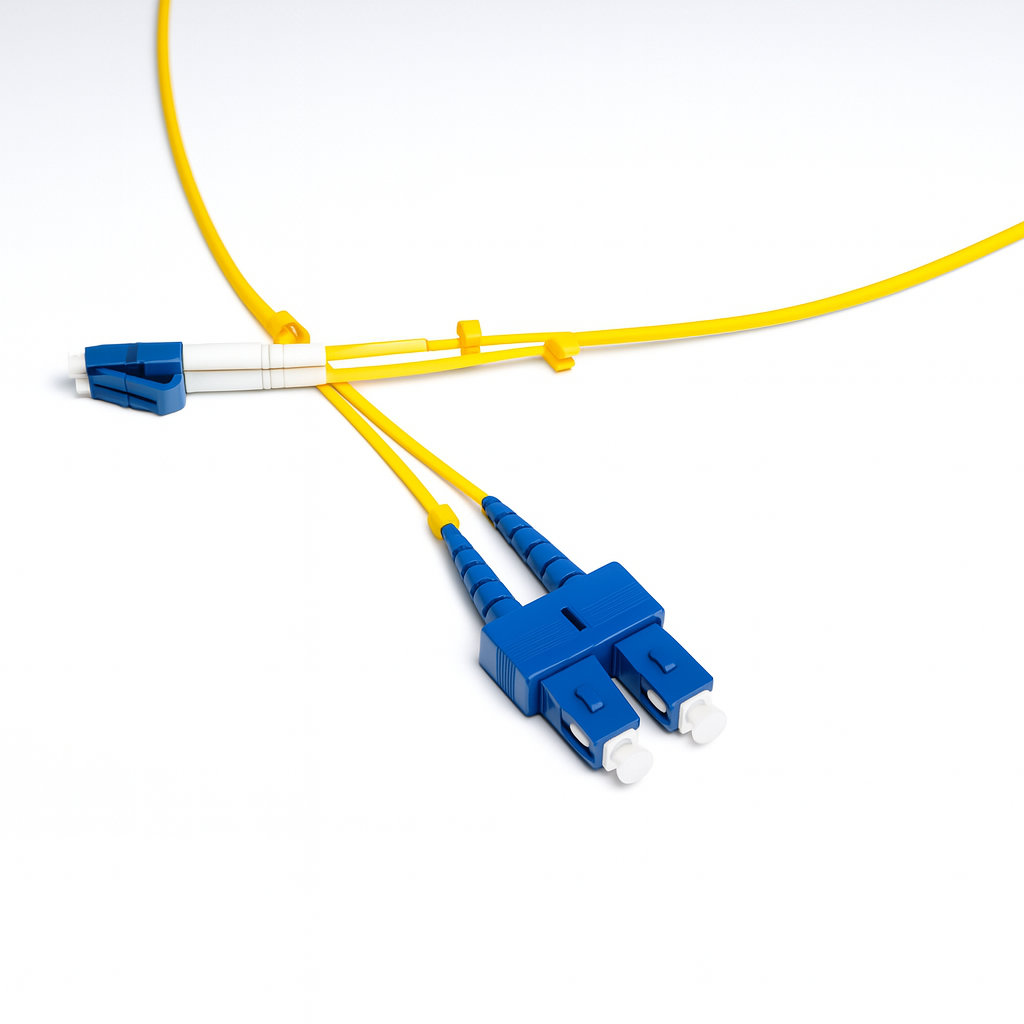

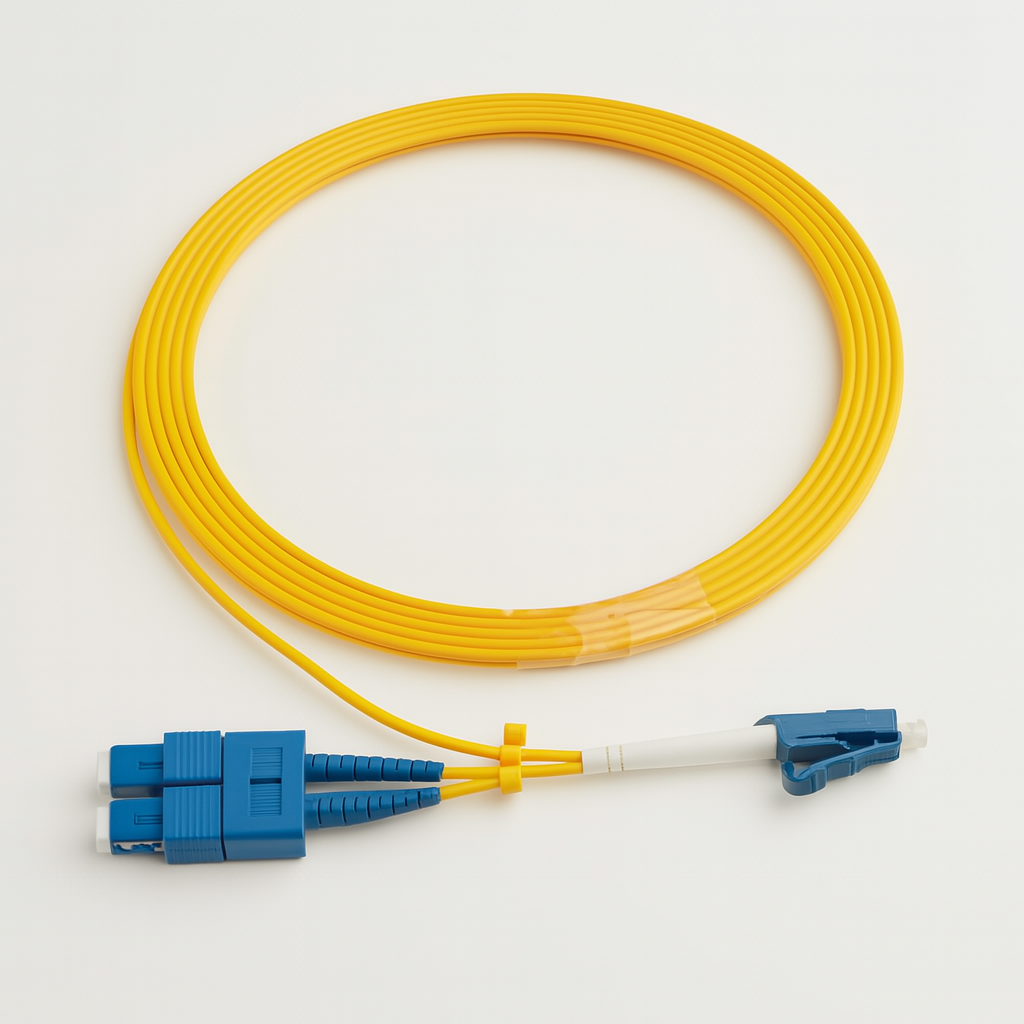

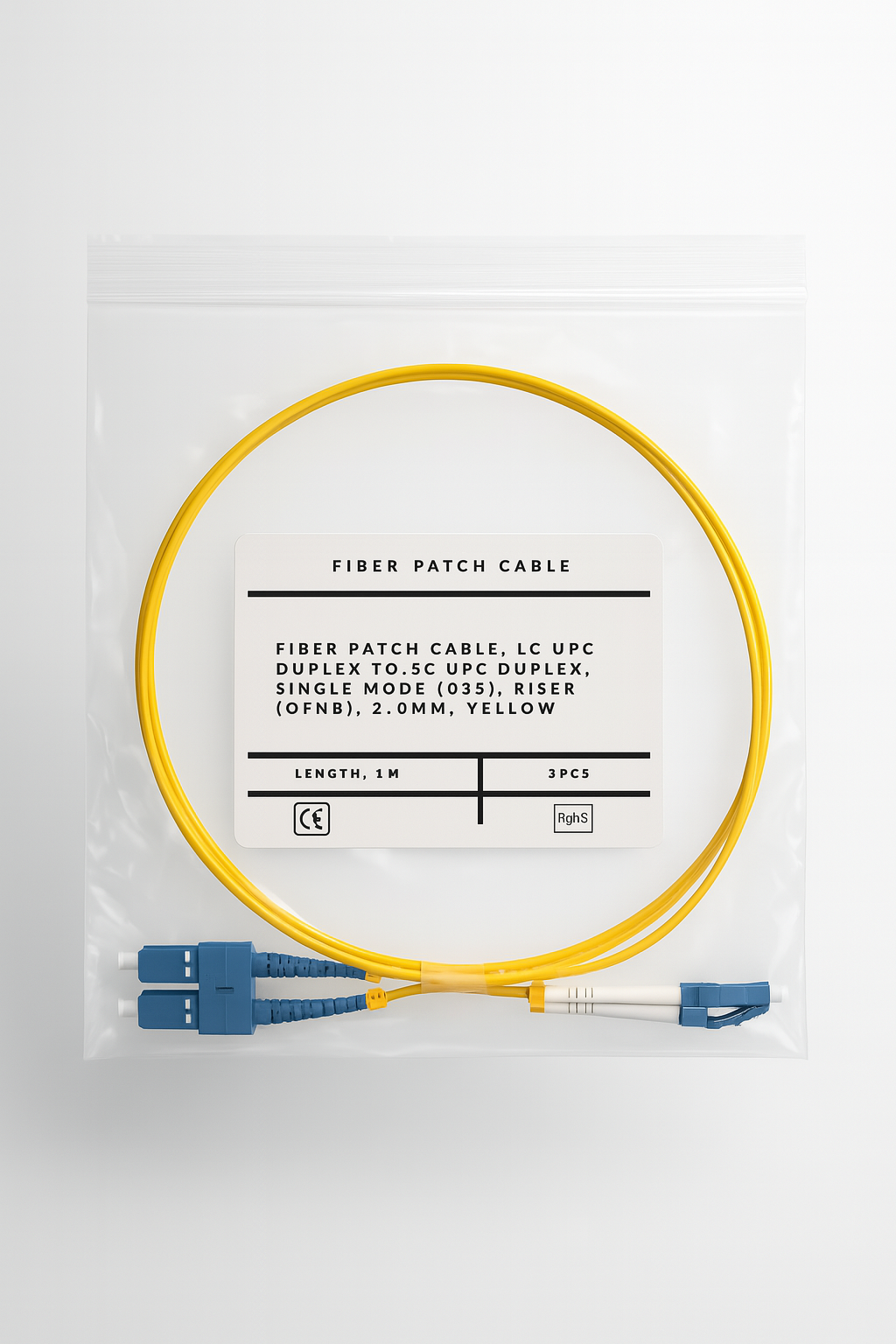

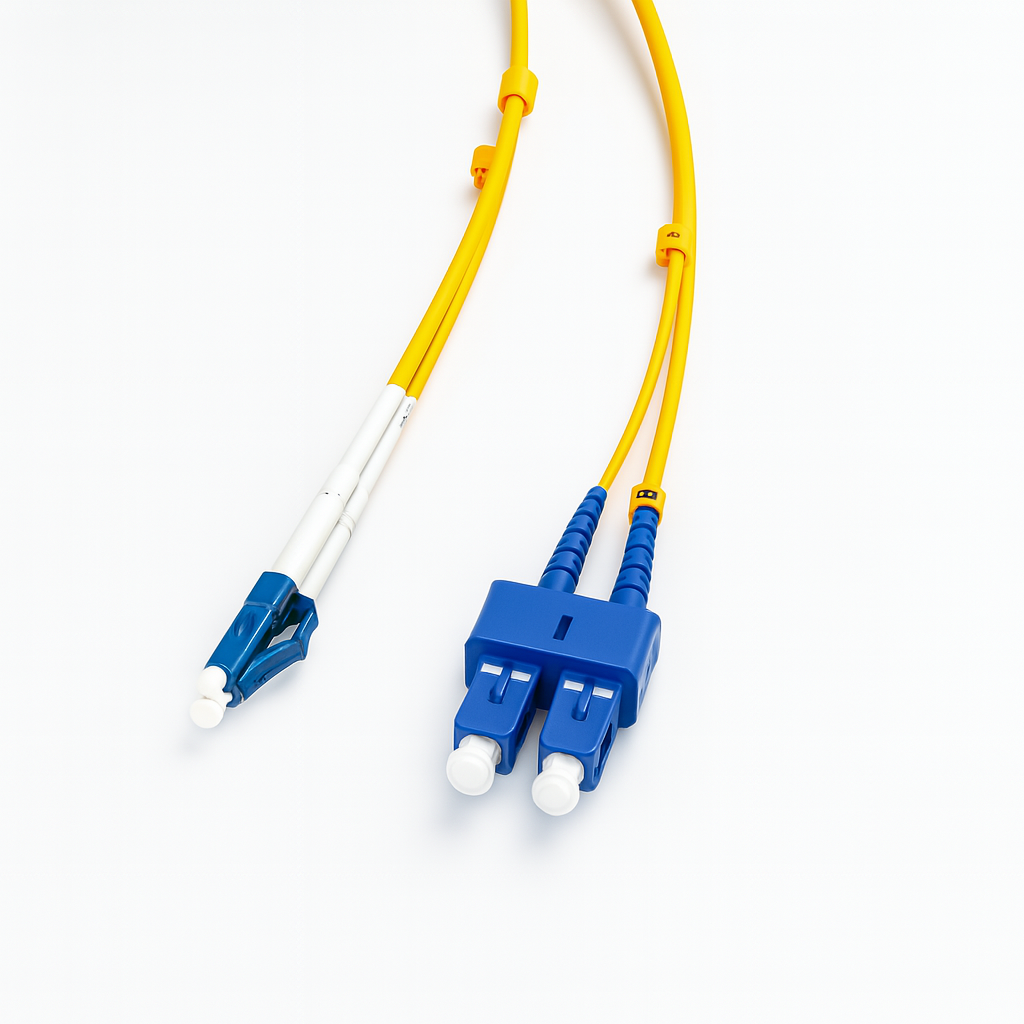

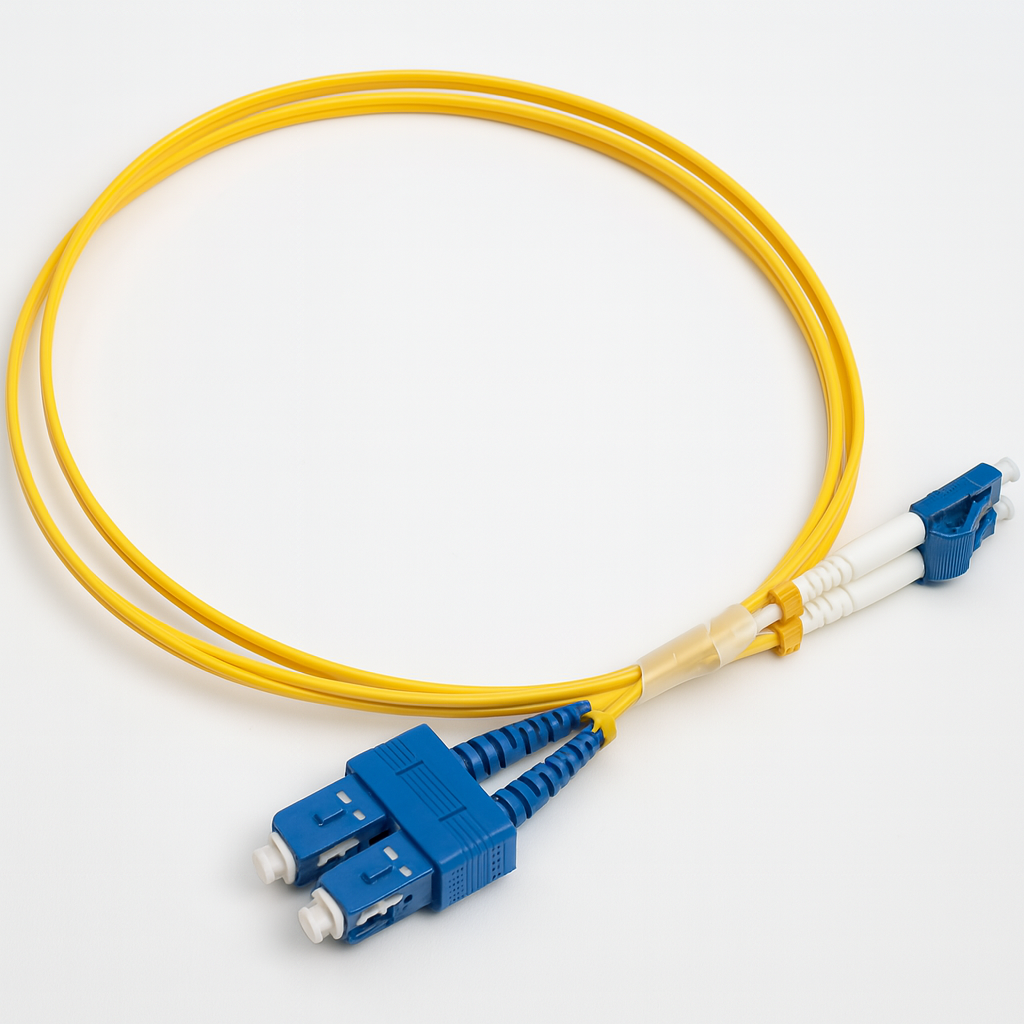

SC-LC Patch cord

SC to LC Fiber Optic Patch Cord – High-Performance Duplex Cable for Fast, Reliable Data Transmission

Our SC-LC fiber optic patch cords are built for high-speed, low-loss data transmission in demanding network environments. Featuring a simplex or duplex configuration with precision-polished SC and LC connectors, these cables ensure minimal insertion loss and optimal performance in data centers, telecom systems, and enterprise networks.

Constructed with high-quality OS2 (single-mode) or OM3/OM4 (multimode) fiber, each patch cord delivers exceptional signal integrity across long distances, making it ideal for Gigabit Ethernet, 10G/40G/100G applications, and high-bandwidth routing between switches, transceivers, and patch panels.

Designed with a durable, flame-retardant LSZH (Low Smoke Zero Halogen) jacket, these cables are both flexible and safe for use in enclosed spaces, such as server racks or office buildings.

Key Features:

• SC to LC connectors with UPC or APC polish options

• Available in Single-mode (OS2) or Multimode (OM3/OM4) fiber types

• Ultra-low insertion loss and high return loss

• PVC or LSZH jacket for flame resistance and flexibility

• Ideal for high-speed networking, telecom, and data center use

• Factory-tested and individually inspected for quality and performance

Perfect for FTTH (Fiber to the Home), backbone networks, or simply expanding your fiber infrastructure with dependable, high-speed links.

u  Applications

Ø  CATV

Ø  Telecommunication networks

Ø  Active device termination

Ø  Local area networks(LANS)

Ø  Data processing networks

Ø  Test equipment

Ø  Wide area networks(WANS)

u  Features

Ø  Low insertion loss and High reflection loss

Ø  Good exchange ability

Ø  Good durability

Ø  High temperature stability

Ø  Standard:Telcordia GR-326-CORE

Ø

u  Specifications ：

u  Ordering Information

PC-SC/UPC-LC/UPC-G657-20/SX - LSZH

         ①              ②   ③/④    ⑤
